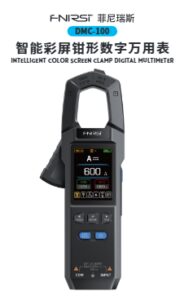

FNIRSI DMC-100 Digital Handheld Clamp Multimeter
FNIRSI DMC-100 is a 10,000-count high-precision intelligent clamp meter, covering 750V voltage and 600A current ultra-wide range, whether it is engineering maintenance, laboratory research, or vehicle overhaul, home electrical diagnostics, can be easy to handle
Features
- High-Precision Measurement: 10,000-count True RMS intelligent clamp meter for accurate readings
- Wide Measurement Range: Supports up to 750V voltage and 600A current
- High-Quality Display: 2.0-inch 240 × 320 full-color TFT screen for clear visuals
- Intuitive Interface: New UI with data curve display for easy reading at a glance
- Three Measurement Modes: Switch freely between general measurement, waveform display, and power measurement modes
- NCV Function: Non-contact voltage measurement and zero/fire line identification
- Long-Lasting Battery: Built-in 3.7V 1500mAh battery for extended usage
- Type-C Interface: Convenient charging and data transmission via Type-C port (only for firmware transmission)
- Additional Functions: Includes a flashlight, screen backlight, and data-saving capabilities
- Auto Power-Off: Intelligent automatic shutdown to conserve battery life
- Temperature Unit Switching: Easily switch between temperature units (℃/℉)
- Adjustable Brightness: Screen brightness is adjustable for various environments
- Firmware Upgradeable: Supports firmware updates to enhance functionality
Specifications
- Screen: 2.0″ TFT
- Screen Resolution: 240*320 pixels
- Maximum Jaws Size: 25mm
- Product Size: 193x74x32mm
- Product Weight: 194g
- DC Voltage: 9.999V/ 99.99V/ 999.9V
- AC Voltage: 9.999V/ 99.99V/ 750.0V
- Current: 99.99A/ 600.0A
- Resistance: 99.99MΩ / 9.999MΩ / 999.9KΩ / 99.99KΩ / 9.999KΩ / 999.9Ω
- Capacitance: 9.999mF / 99.99mF / 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF
- Frequency: 9.999MHz / 999.9KHz / 99.99KHz / 9.999KHz / 999.99Hz / 99.99Hz / 9.999Hz
- Temperature: -55~1300℃ / -67~2372℉
- Diode Measurement: Yes
- Non-Contact Voltage: Supported
- Zero Fire Wire Check: Supported
- Measurement Modes:
- 1. General Measurement/ 2. Waveform Display/ 3. Power Measurement
- Waveform Display: Supported
- Power Calculation: Supported
- Data Storage: 30 Sets
- Language: Chinese/ English
- Wide Measurement Range: Supports up to 750V voltage and 600A current
Battery Data:
- Type: Li Polymer
- Voltage: 3.7V
- Energy: 1500mAh / 5.55 Wh
- Battery Weight: 28g
- Battery Size: 48.7*30.1*9.7mm
- Li Content: 0.45g
