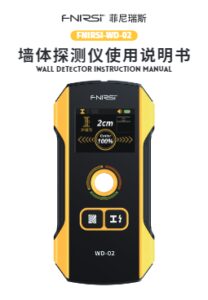

FNIRSI WD-02 Digital Wall Scanner/Detector

Overview

The WD-02 is a Digital Wall Scanner that can be used to detect metal and cables, such as pipes and electrical wires, concealed behind walls and ceilings.

It has visual and audio warnings to let you know when a metal object is located, along with a signal strength display reading on the high-definition LCD TFT Screen, and there are 3 sensitivity settings for the device.

The interface is very simple and you will be able to start taking readings as soon as it is out of the case, with no messing around for configuration each time you use it, and the device will default to metal objects when powered up.

It has a built-in rechargeable lithium battery, and can be recharged using a USB Type C Cable (supplied) and a standard or fast-charger.

This upgraded version has the inspection hole in the centre of the unit to allow you to see or mark the area of interest.

Specifications

Model: WD-02

Detection Depth – Ferrous: 120mm

Detection Depth – Non-Ferrous (Copper): 100mm

Detection Depth – AC: 50mm

Detection Depth – Single Stranded Wire >4mm2: 40mm

Battery: 3.7V 300mAH

Dimensions: 138x68x22mm

Operating Temperature Range: -10~+50°C

Storage Temperature Range: -20~+70°C

Humidity Range – Metal: 0~85%RH

Humidity Range Foreign Object: 0~60%RH

Humidity Range AC Mode: 0~30%RH

Battery Data:

• Type: Li Ion Polymer
• Voltage: 3.7V
• Energy: 300mAh / 1.11 Wh
• Battery Weight: 7.25g
• Battery Size: 33*20*6mm
